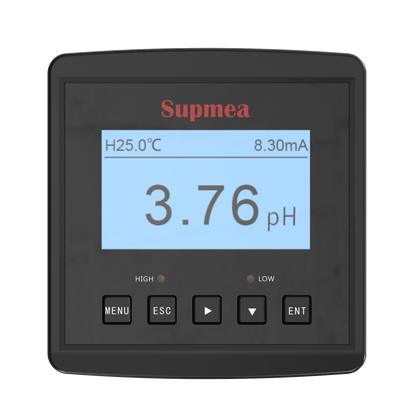

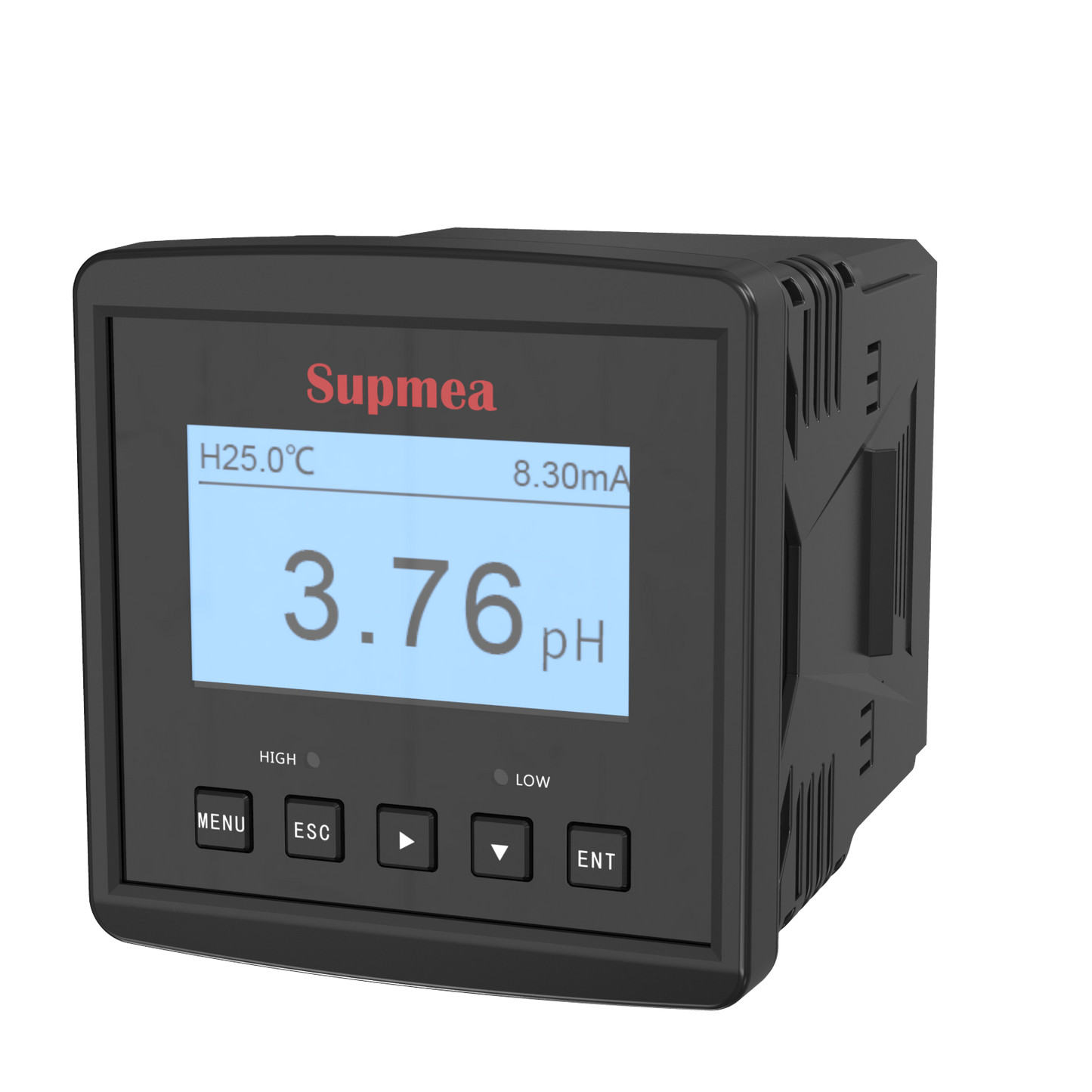

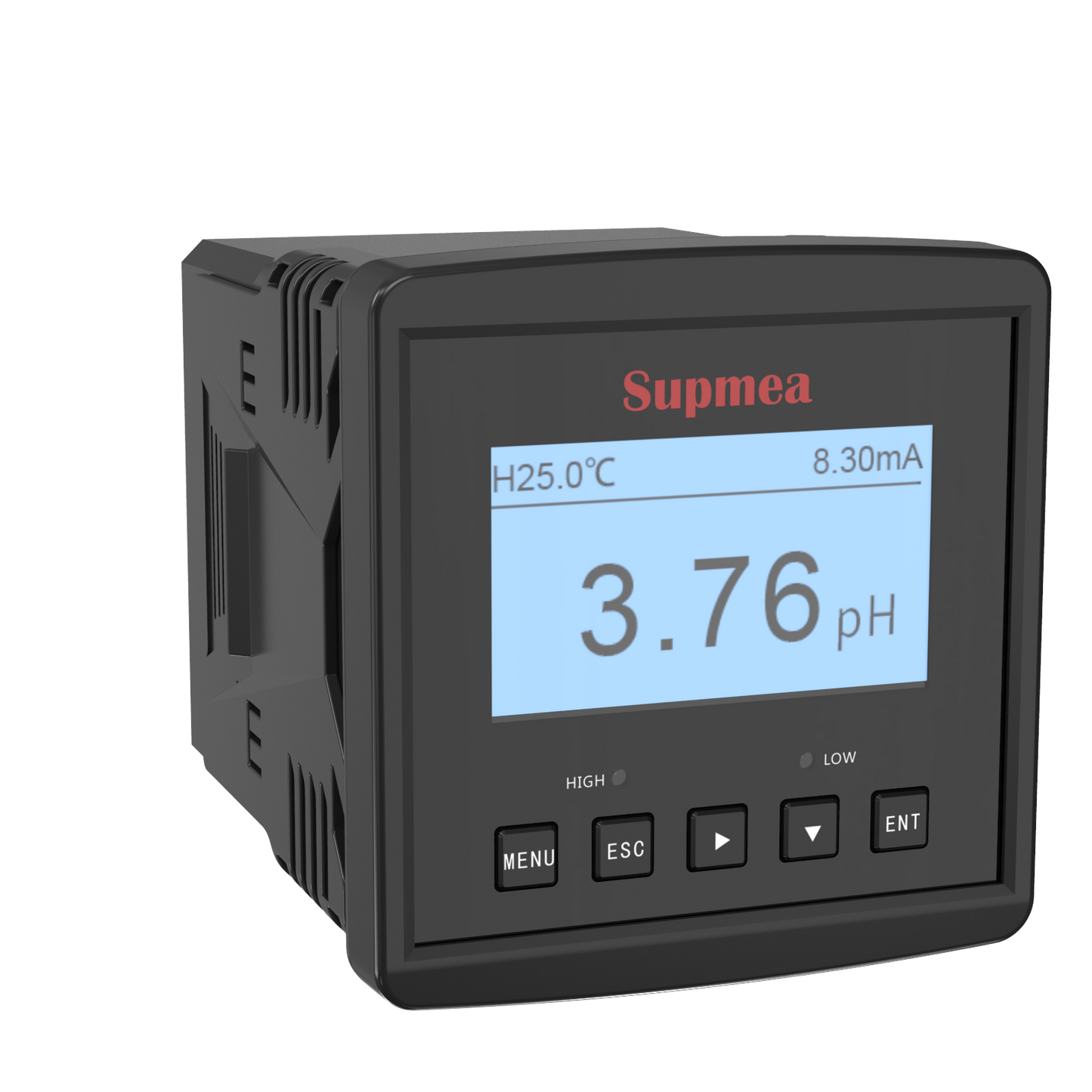

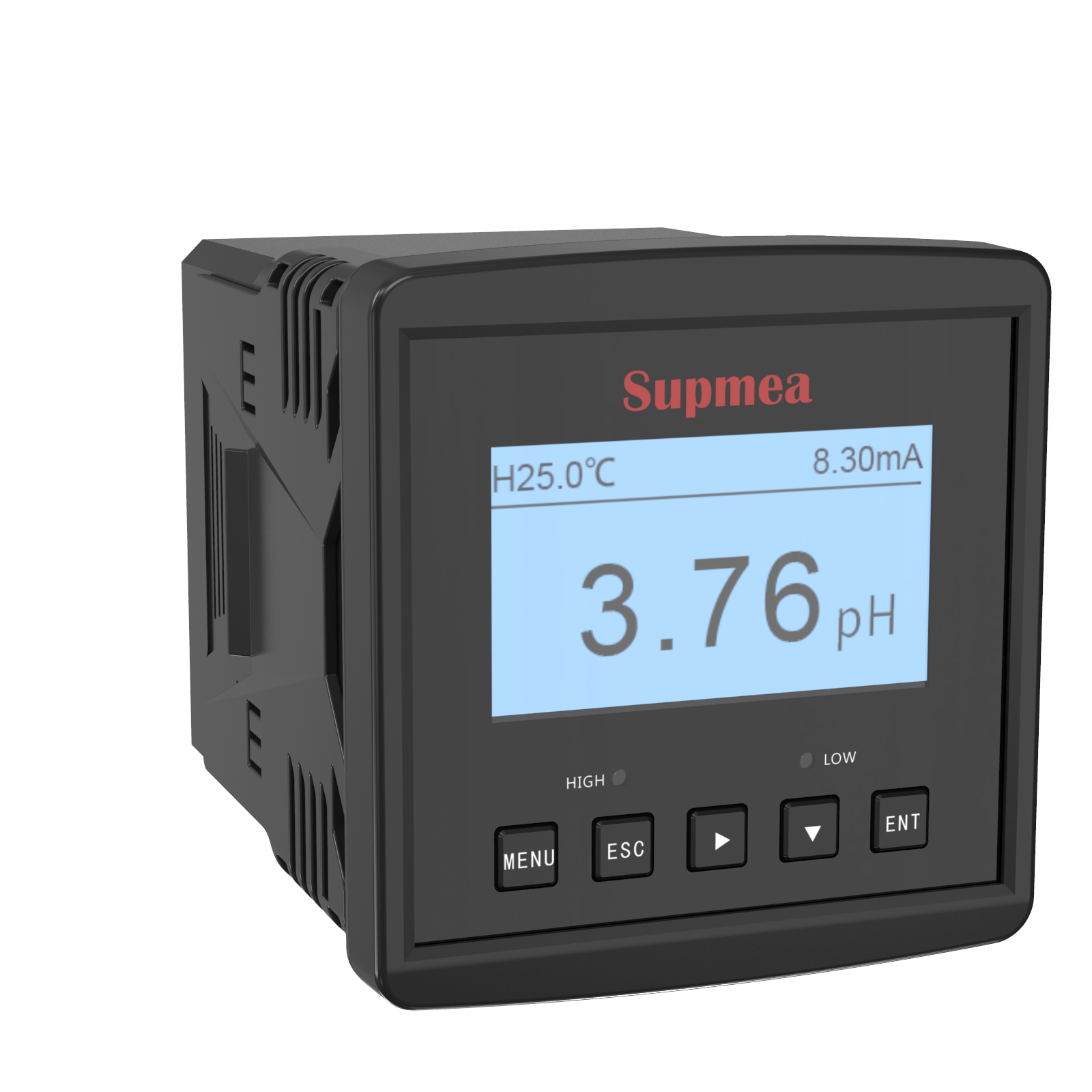

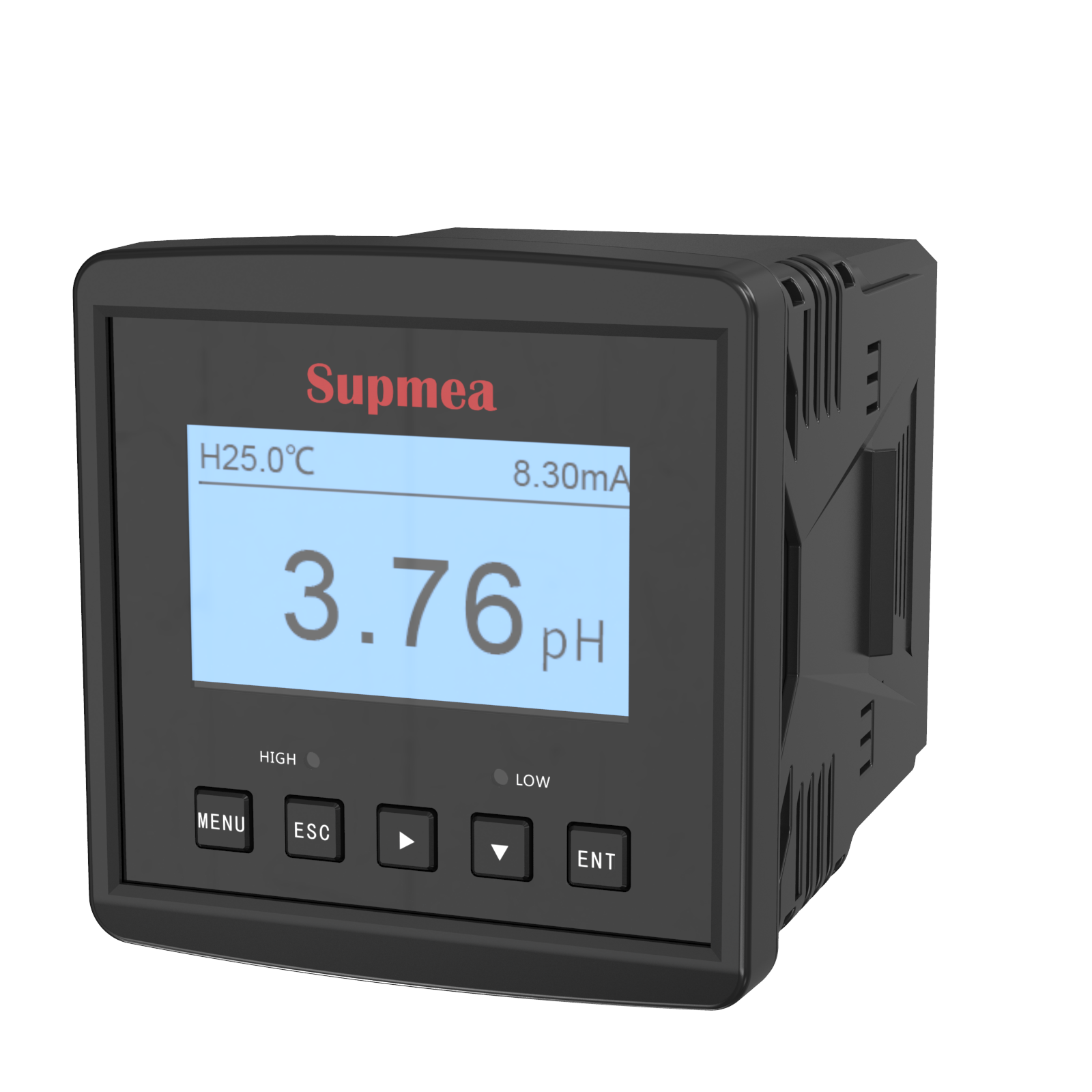

Universal Controller DC-2000

The SUPMEA DC2000 is an advanced digital analysis monitor specifically designed for the precise monitoring and analysis of water and liquid quality. It is ideal for applications in water treatment, wastewater management, the chemical industry, and food processing, where controlling liquid quality is crucial.

The DC2000 offers multi-channel measurement capabilities, meaning that multiple sensors can be connected simultaneously. This feature allows for the simultaneous monitoring of various parameters, including pH, temperature, conductivity, dissolved oxygen, turbidity, and many other chemical and physical properties. This ensures a comprehensive analysis of water quality and enables a rapid response to changes in process conditions.

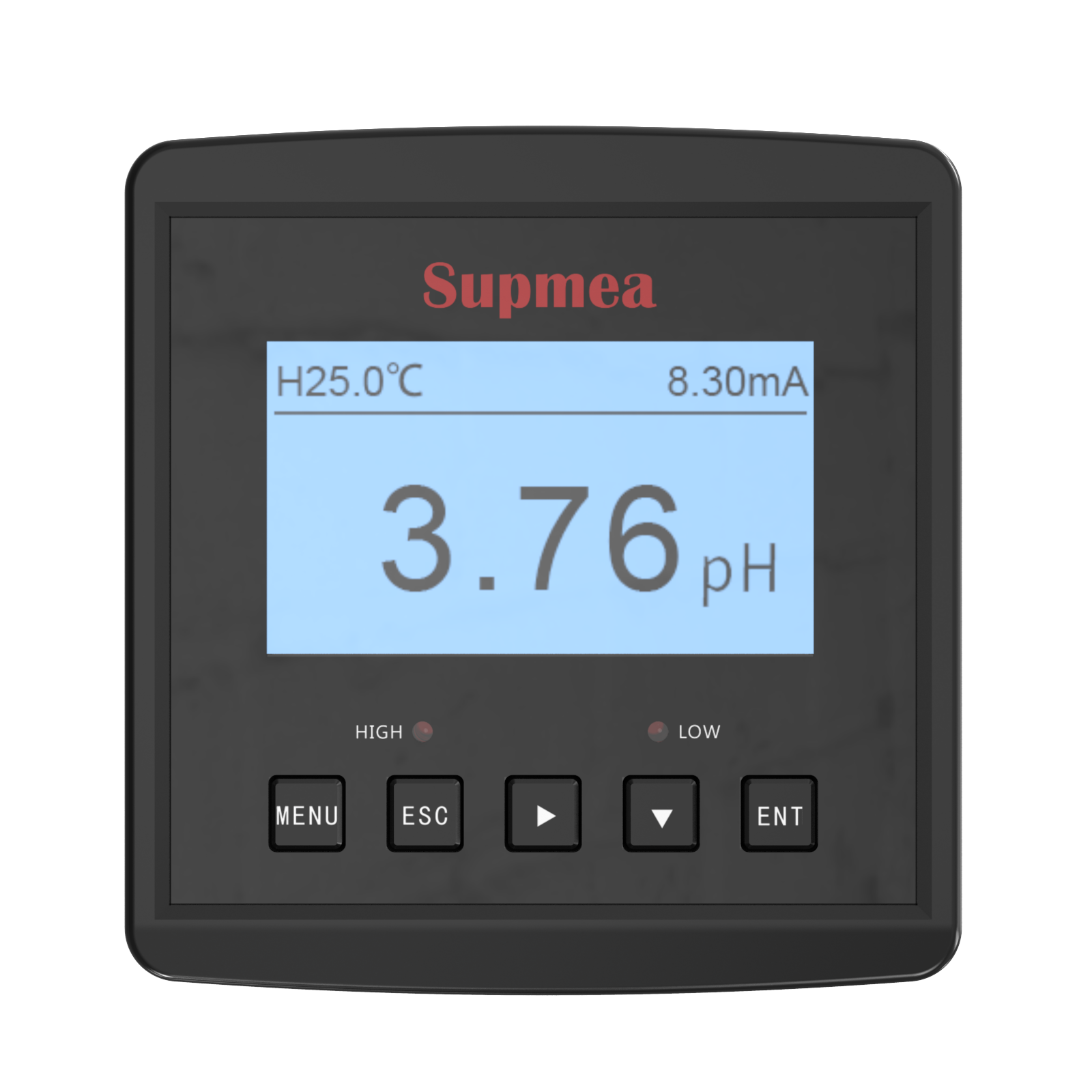

The device features an intuitive, user-friendly display that shows real-time measurement data and makes navigation through menus and settings easy. The DC2000’s customizability allows users to set specific alarms and warnings, ensuring they are immediately informed if values exceed predefined limits.

In terms of connectivity, the DC2000 is equipped with various communication protocols, including Modbus RTU and RS485, allowing for seamless integration into existing automation systems and process controls. This flexibility facilitates connection to SCADA systems or other monitoring platforms, optimizing data analysis and processing.

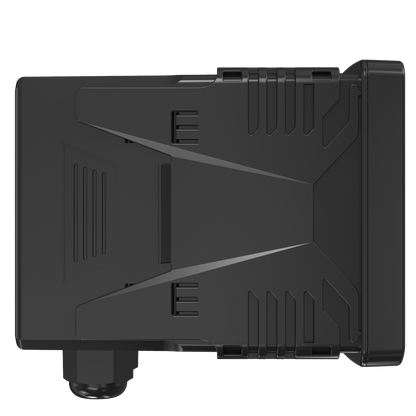

The rugged design of the DC2000 guarantees high resistance to environmental factors, making it ideal for demanding industrial applications. Its high accuracy and stable performance ensure reliable data, which is essential for quality assurance and process optimization.

Additionally, the DC2000 offers extensive calibration and maintenance options to ensure long-term performance and accuracy. Its ease of maintenance and availability of spare parts make it a cost-effective solution for companies that need continuous monitoring of liquid quality.

Overall, the SUPMEA DC2000 is a powerful and versatile digital analysis monitor that provides comprehensive functions for analyzing and monitoring water and liquid quality. It ensures that businesses meet required standards for safety and quality while working more efficiently.

Manufacturer: Supmea Automation Co.,Ltd.

Model: DC-2000

Display: 2.8 inch LCD display

Reach:

pH (0~14 pH)

ORP (-2000~+2000 mV)

Dissolved oxygen (020 mg/L / 040 mg/L)

saturation (0~200%)

conductivity (0~600 mS/cm)

turbidity (0~4000 NTU)

SS/TSS (0~120000 mg/L)

Relay output: A series of high and low limit alarms
(3A/250VAC), relay with normally open contact.

Communication: RS-485 communication, MODBUS RTU

Transmission: Isolated 4~20 mA output, the maximum loop is 750 Ω, ±0.2% FS

Operating temperature: (0~60) °C

Power supply: (100~240) VAC;
24 VDC (optional)

Total dimensions (mm): 100 x 100 x 150; cutout +1

Dimensions (mm): 92.5+1 × 92.5 cutout +1
